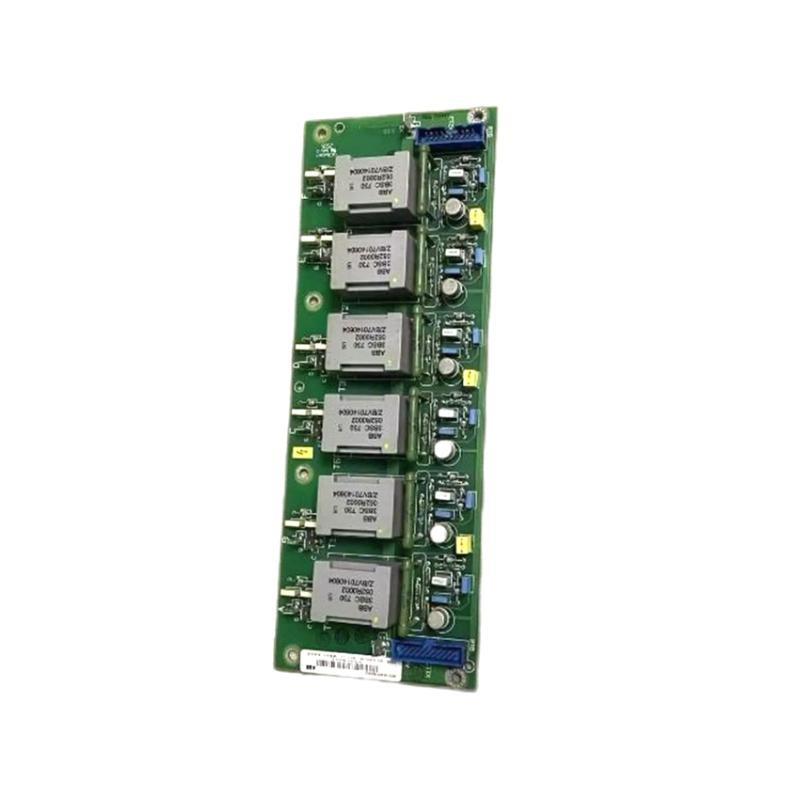

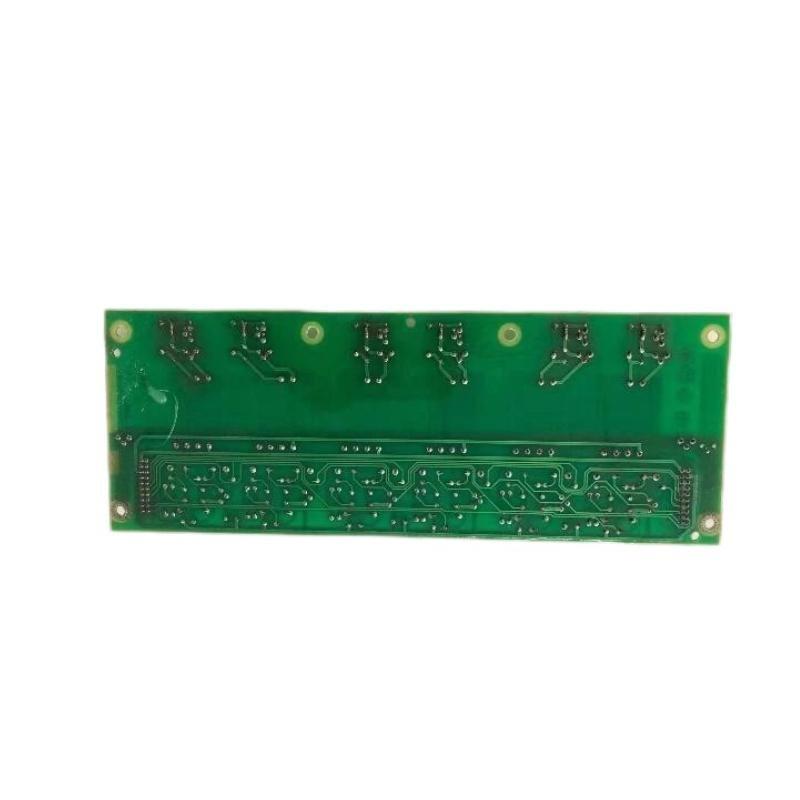

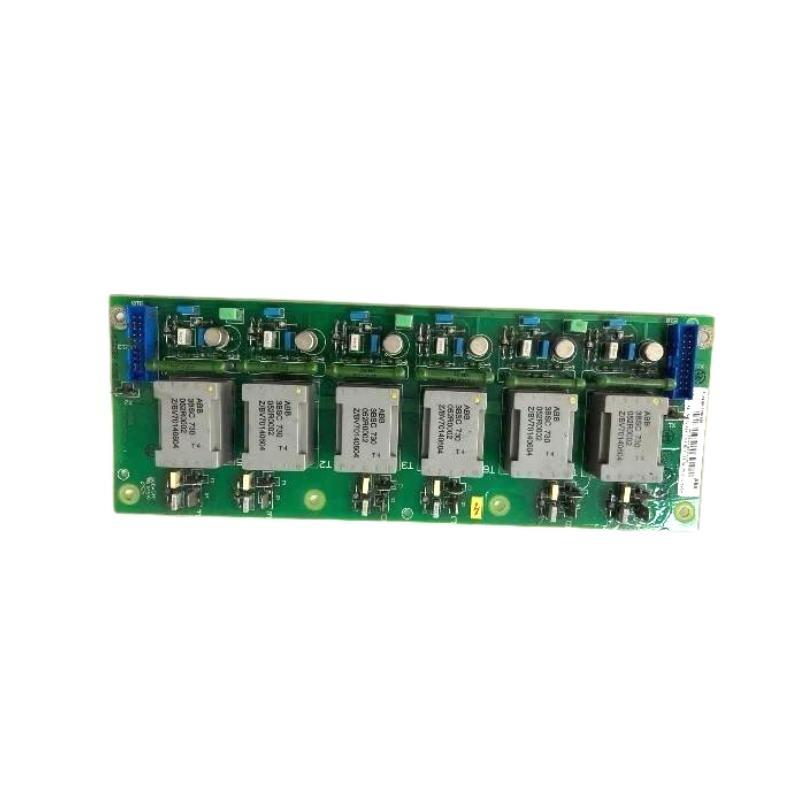

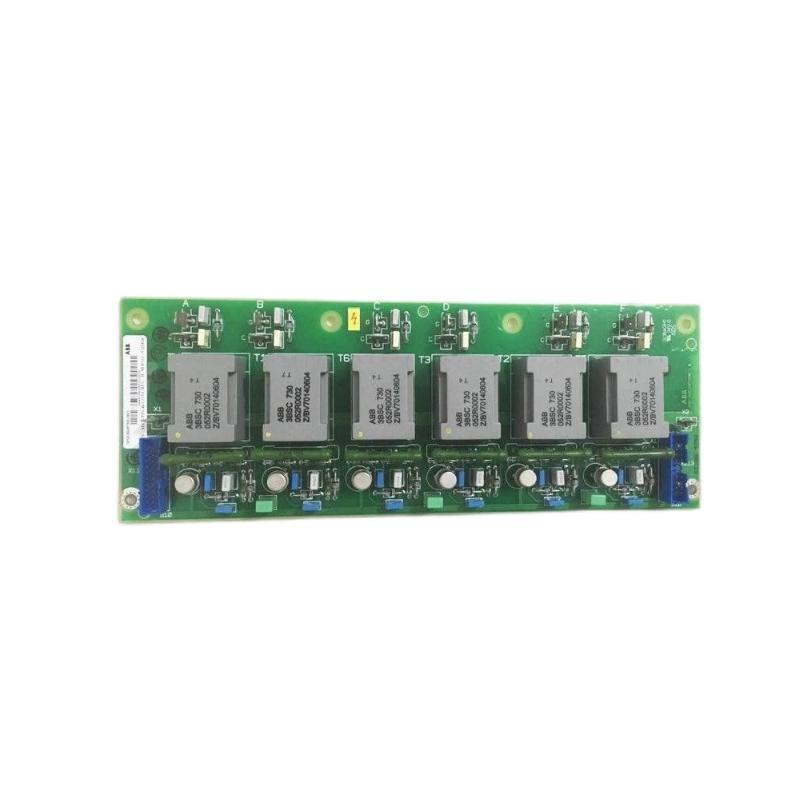

Product Introduction ABB SDCS-PIN-H41 Brand：ABB Item No.：SDCS-PIN-H41 Product Type：Pulse Interface Board Product Origin：Sweden Dimensions：160 × 100 × 30 mm Weight：0.30 kg Payment：T/T,
| Release time | Jun 02, 2026 |
| Manufacturer | ABB PLC |
| Model | SDCS-PIN-H41 |
| Part Number | IN44578 |
| Condition | 100% New |
| Shipping Port | Xiamen, China |
| Lead Time | 1-3 Working Days |
| Certificate | COO |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
| Warranty | 1 Years |
Product Introduction
ABB SDCS-PIN-H41
Brand：ABB
Item No.：SDCS-PIN-H41
Product Type：Pulse Interface Board
Product Origin：Sweden
Dimensions：160 × 100 × 30 mm
Weight：0.30 kg
Payment：T/T, Western Union, Credit Card
Shipping Port：Xiamen, China
Lead Time：1-3 Days
Condition：Brand New And Original
Warranty：1 Year
Q1. What is the function of the SDCS-PIN-H41 board?
The SDCS-PIN-H41 is a pulse interface board used in ABB DC drives to process encoder or tachometer signals for accurate motor speed and position feedback.
Q2. Which drive systems are compatible with this board?
This module is designed for use with ABB DCS800 series DC drive systems.
Q3. What types of signals does the board handle?
The board processes digital pulse signals generated by feedback devices such as incremental encoders or tachometers.
Q4. Does the SDCS-PIN-H41 require a separate power supply?
No. It receives its operating power directly from the internal power system of the drive.
Q5. Where is the board installed within the drive?
It is mounted inside the control section of the drive and connected to the main control board through internal connectors.
Q6. Can the board be replaced if it becomes faulty?
Yes. The module is designed as a replaceable spare part and can be exchanged during maintenance or repair.
Q7. Does the module require additional cooling?
No additional cooling is necessary because the board uses the airflow within the drive enclosure for heat dissipation.
Q8. What precautions should be taken when installing or replacing the board?
The drive must be fully powered down before installation, and proper electrostatic discharge protection should be used to protect the electronic components.
