Product Introduction HIMA F3330 8-Channel Output Module Brand：HIMA Item No.：F3330 Product Type：8-Channel Output Module Product Origin：Germany Dimensions：100 x 75 x 50 mm Weight：0.25 kg Pay
| Release time | Jun 03, 2026 |
| Manufacturer | Hima DCS Modules |
| Model | F3330 |
| Part Number | IN45762 |
| Condition | 100% New |
| Shipping Port | Xiamen, China |
| Lead Time | 1-3 Working Days |
| Certificate | COO |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
| Warranty | 1 Years |
Product Introduction

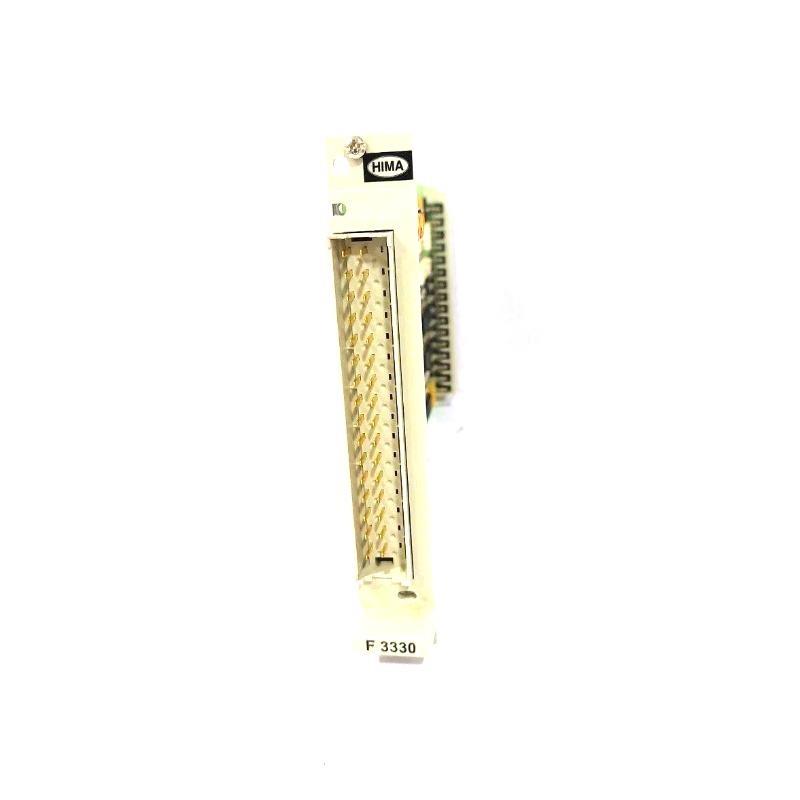

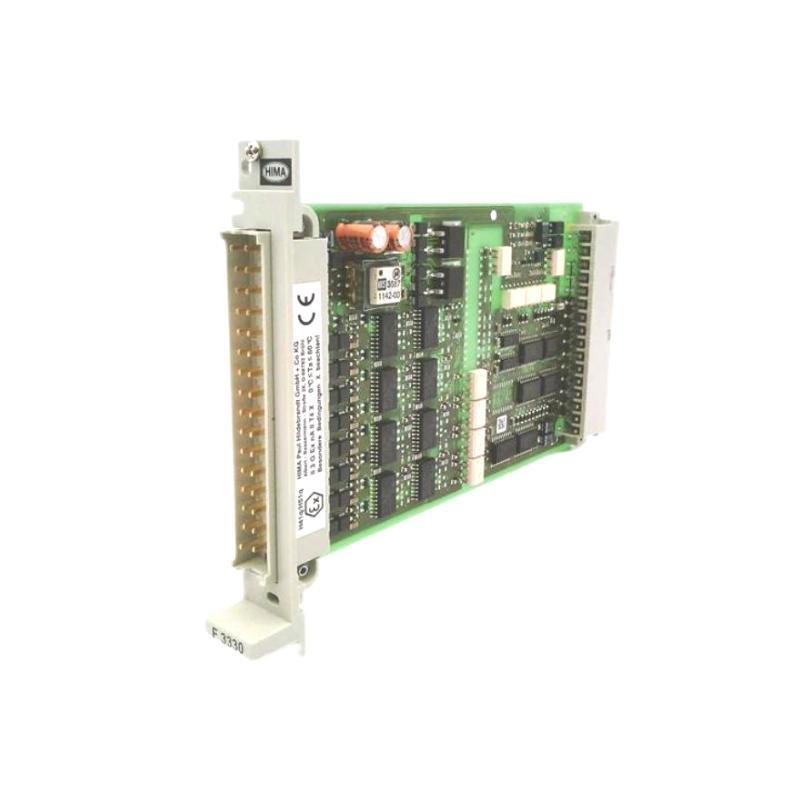

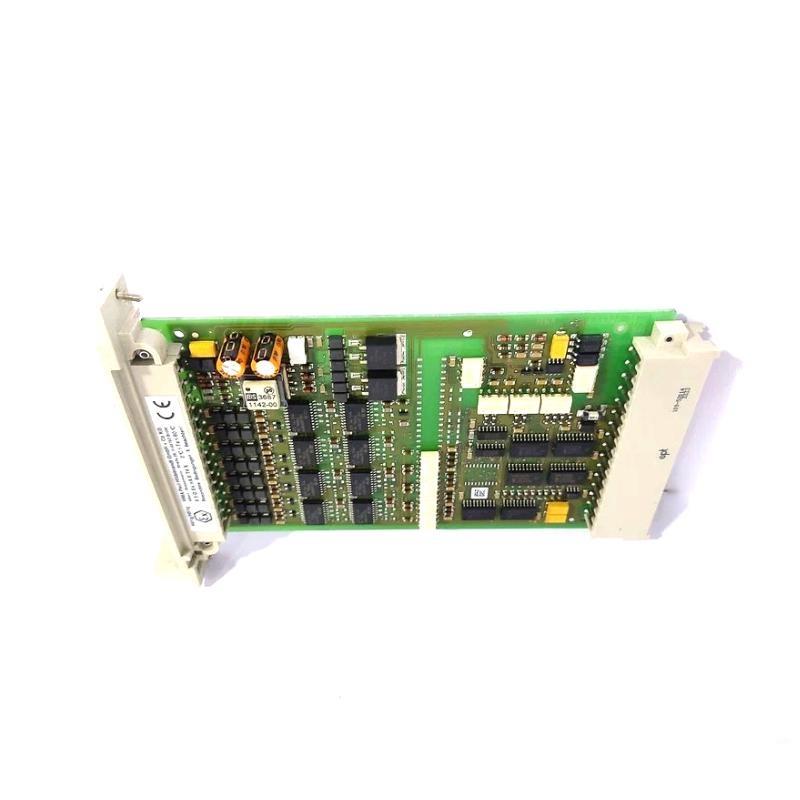

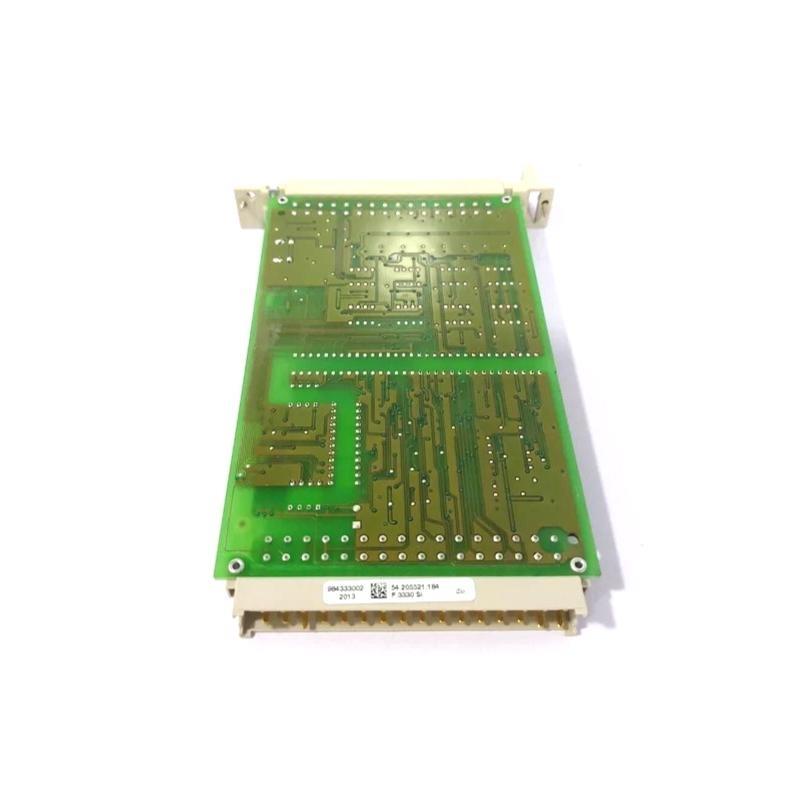

HIMA F3330 8-Channel Output Module
Brand：HIMA
Item No.：F3330
Product Type：8-Channel Output Module
Product Origin：Germany
Dimensions：100 x 75 x 50 mm
Weight：0.25 kg
Payment：T/T, Western Union, Credit Card
Shipping Port：Xiamen, China
Lead Time：1-3 Days
Condition：Brand New And Original
Warranty：1 Year
What types of loads can the F3330 module handle?
The module supports resistive and inductive loads, with a maximum current of 500 mA per channel and a power rating up to 12 W.
Is the module protected against short circuits?
Yes, the F3330 includes short-circuit protection and can handle temporary currents between 0.75 A and 1.5 A.
Does the module ensure safety in case of power loss?
Yes, in the event of a break in the L- supply, the output is safely turned off to prevent uncontrolled operation.
Is an external diode required for inductive loads?
Yes, when using inductive loads, external diodes such as 1N4007 or 1N4448 must be used to suppress voltage spikes.
What is the maximum output leakage current per channel?
The leakage current for each output channel is limited to a maximum of 350 µA.
Can multiple F3330 modules be used in parallel?
Yes, up to 10 output modules can be installed in one I/O rack under nominal load, and they can be paralleled without external diodes.
Does the module include any self-diagnostic features?
Yes, it features automatic runtime diagnostics, including output signal feedback and walking-bit tests.
What are the requirements for rack installation?
A maximum of 10 F3330 output modules can be installed per I/O rack when operating at full nominal load.
