Product Introduction HIMA F3334 4-Fold Output Module Brand：HIMA Item No.：F3334 Product Type：4-Fold Output Module Product Origin：Germany Dimensions：120 x 160 x 40 mm Weight：0.113 kg Payment：
| Release time | Jun 03, 2026 |
| Manufacturer | Hima DCS Modules |
| Model | F3334 |
| Part Number | IN45735 |
| Condition | 100% New |
| Shipping Port | Xiamen, China |
| Lead Time | 1-3 Working Days |
| Certificate | COO |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
| Warranty | 1 Years |
Product Introduction

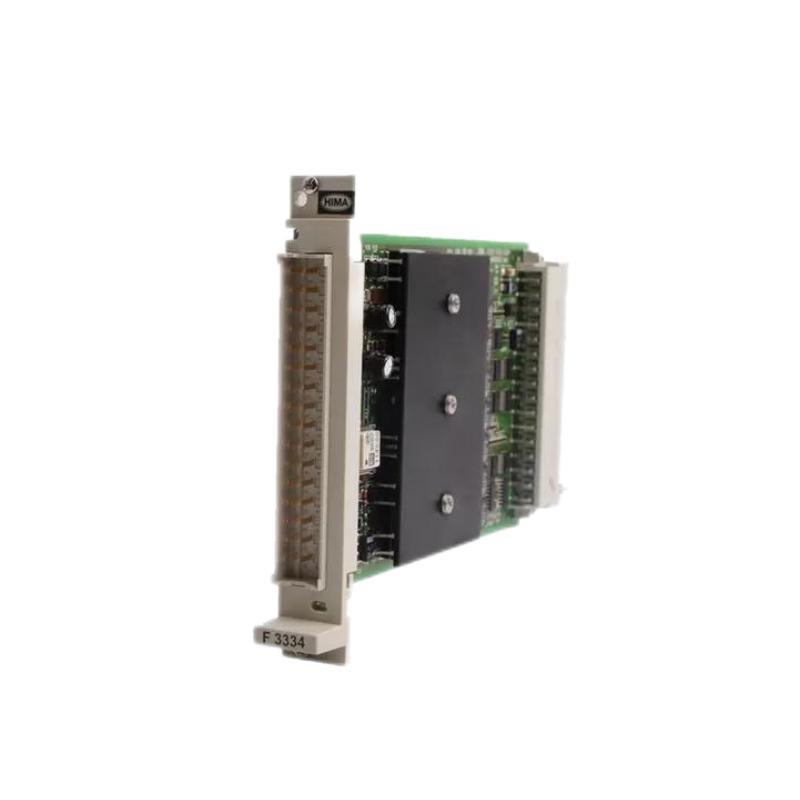

HIMA F3334 4-Fold Output Module
Brand：HIMA
Item No.：F3334
Product Type：4-Fold Output Module
Product Origin：Germany
Dimensions：120 x 160 x 40 mm
Weight：0.113 kg
Payment：T/T, Western Union, Credit Card
Shipping Port：Xiamen, China
Lead Time：1-3 Days
Condition：Brand New And Original
Warranty：1 Year
How many channels can be used at full 2 A load simultaneously?
Only 2 channels can be operated simultaneously at 2 A. For loads up to 1 A, all 4 channels can operate simultaneously.
Does the module have short-circuit protection?
Yes, each output is short-circuit proof.
Is line monitoring supported?
Yes, the module supports line monitoring and requires a minimum load of 10 mA for detection.
What happens during a line break?
In the event of a line break, no output signal is generated due to L- supply loss detection.
Can the module drive lamps directly?
Yes, up to 25 W lamp loads are supported, but high inrush currents may require configuration via software block HB-BLD-.
What is the undervoltage threshold?
The module trips on undervoltage at ≤ 16 V.
Can the outputs be paralleled?
Yes, outputs can be paralleled without external diodes.
Is the module automatically tested during operation?
Yes, the module performs automatic self-tests including output feedback and line monitoring.
