Product Introduction HIMA F3430 4-Fold Relay Module Brand：HIMA Item No.：F3430 Product Type：4-Fold Relay Module Product Origin：Germany Dimensions：120 x 45 x 100 mm Weight：0.5 kg Payment：T
| Release time | Jun 03, 2026 |
| Manufacturer | Hima DCS Modules |
| Model | F3430 |
| Part Number | IN45730 |
| Condition | 100% New |
| Shipping Port | Xiamen, China |
| Lead Time | 1-3 Working Days |
| Certificate | COO |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
| Warranty | 1 Years |
Product Introduction

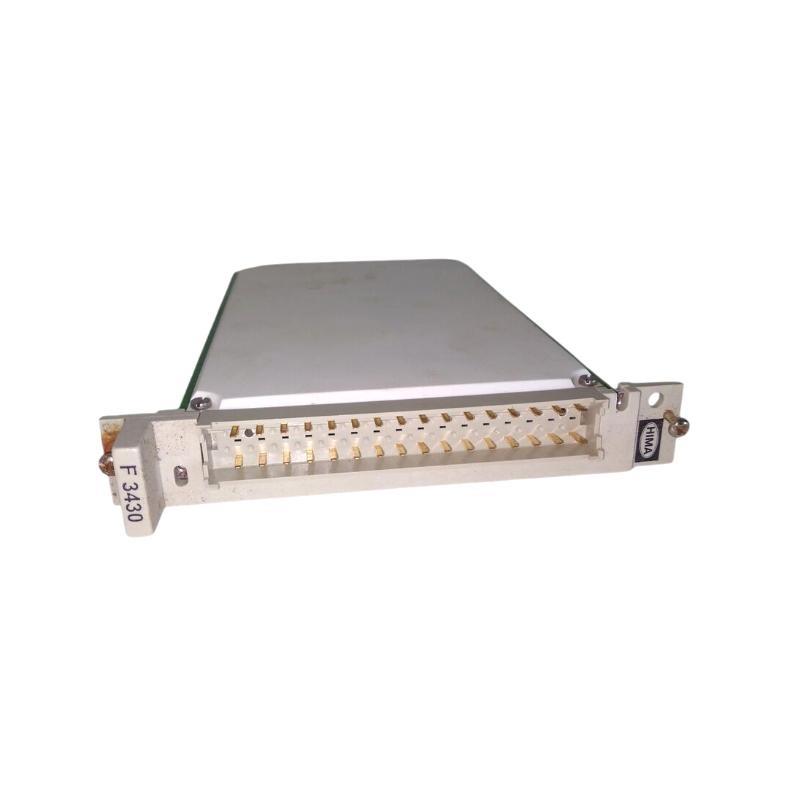

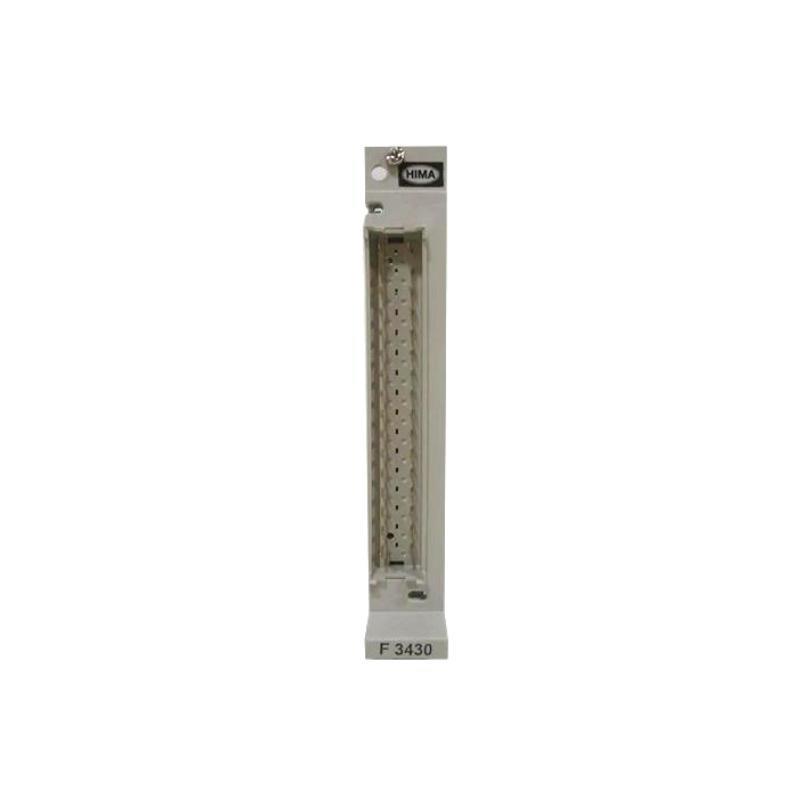

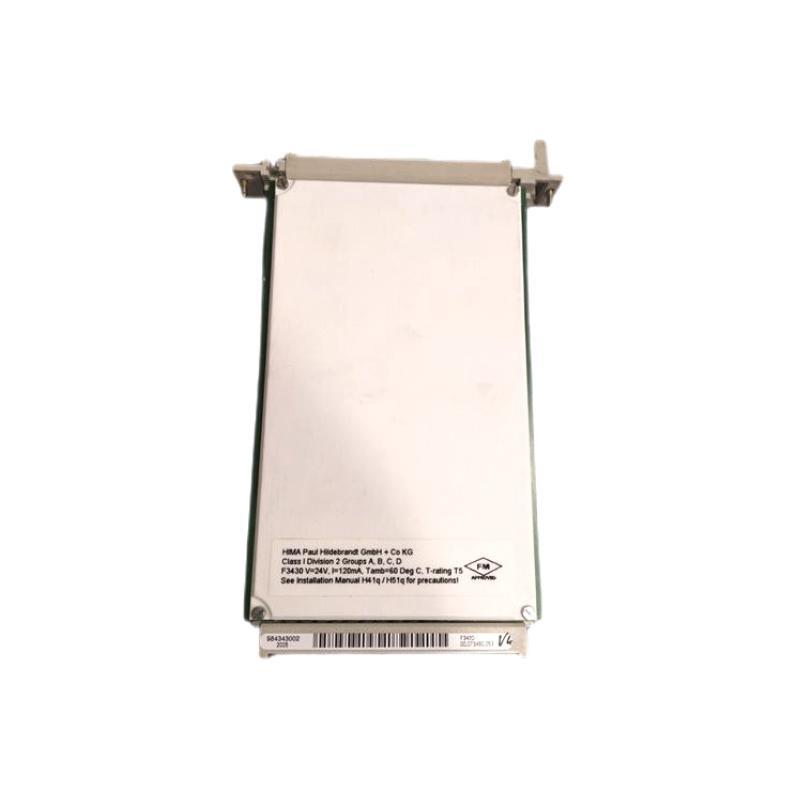

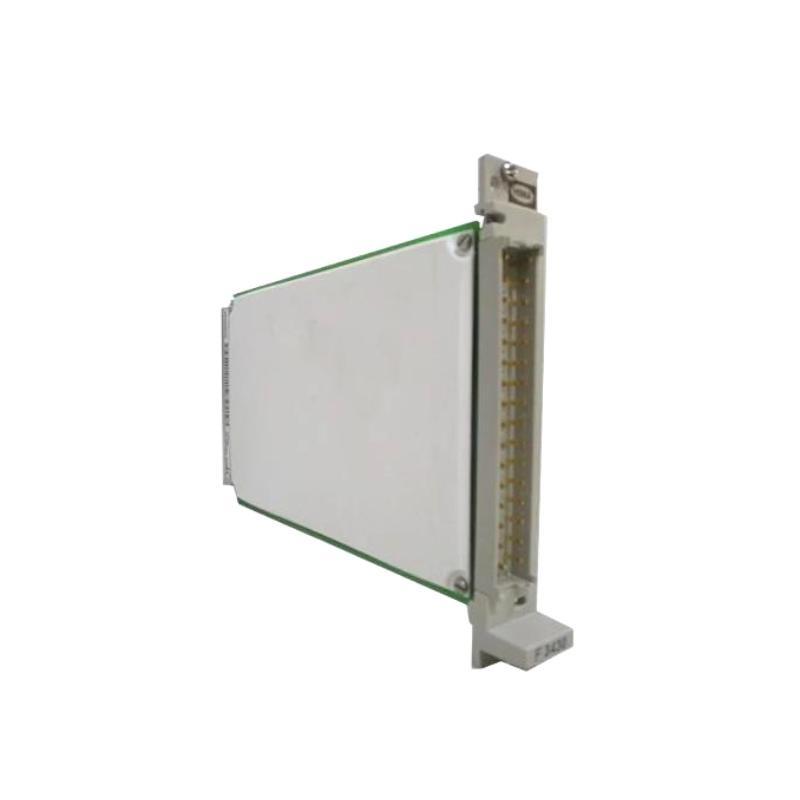

HIMA F3430 4-Fold Relay Module
Brand：HIMA
Item No.：F3430
Product Type：4-Fold Relay Module
Product Origin：Germany
Dimensions：120 x 45 x 100 mm
Weight：0.5 kg
Payment：T/T, Western Union, Credit Card
Shipping Port：Xiamen, China
Lead Time：1-3 Days
Condition：Brand New And Original
Warranty：1 Year
How many relay outputs does the HIMA F3430 support?
The module supports 4 independent relay output channels.
Does the module provide safe isolation?
Yes, it features safe isolation between input and output per EN 50178.
What is the maximum switching voltage supported?
The maximum switching voltage is 250 V AC or 110 V DC.
What is the switching capacity in DC operation?
At 30V DC: 120W, 70V DC: 50W, 110V DC: 30W (all non-inductive).
What are the typical timing characteristics?
Switching time: approx. 8 ms, reset time: 6 ms, bounce time: 1 ms.
What are the power supply requirements?
The module operates with 5 V DC (<100 mA) or 24 V DC (<120 mA).
What is the maximum fuse rating for output circuits?
The output circuits can be fused with a maximum of 2.5 A.
What are the dimensions and weight of the module?
The module measures 120 x 45 x 100 mm and weighs 0.5 kg.
