Product Introduction Schneider ATV61HD22N4 Brand：Schneider Item No.：ATV61HD22N4 Product Type：Variable Frequency Drive (VFD) Product Origin：France Dimensions：240 × 420 × 236 mm Weight：3
| Release time | Jun 02, 2026 |
| Manufacturer | Schneider PLC |
| Model | ATV61HD22N4 |
| Part Number | IN45170 |
| Condition | 100% New |
| Shipping Port | Xiamen, China |
| Lead Time | 1-3 Working Days |
| Certificate | COO |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
| Warranty | 1 Years |
Product Introduction

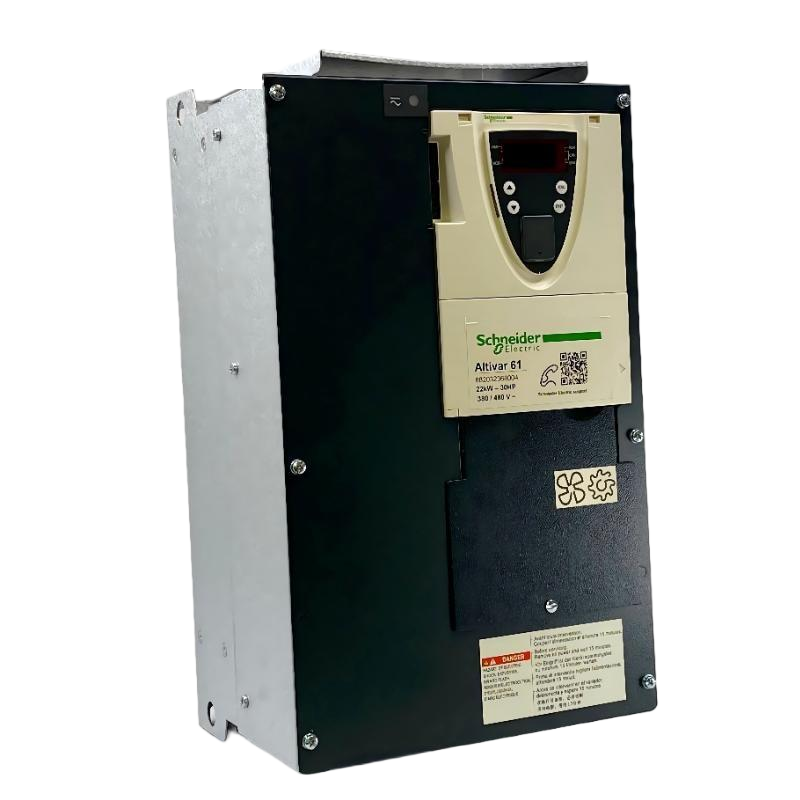

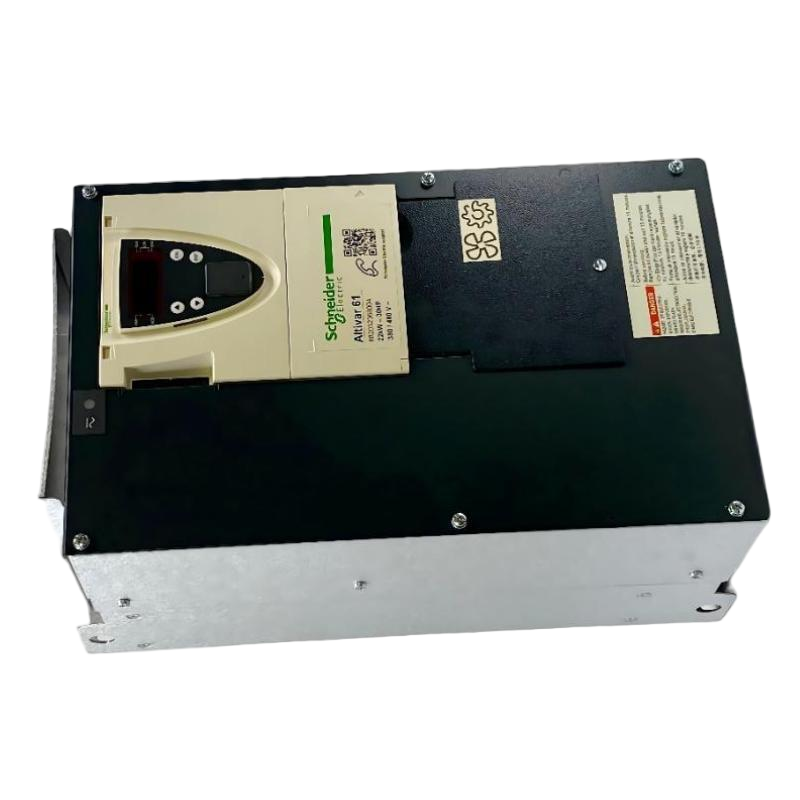

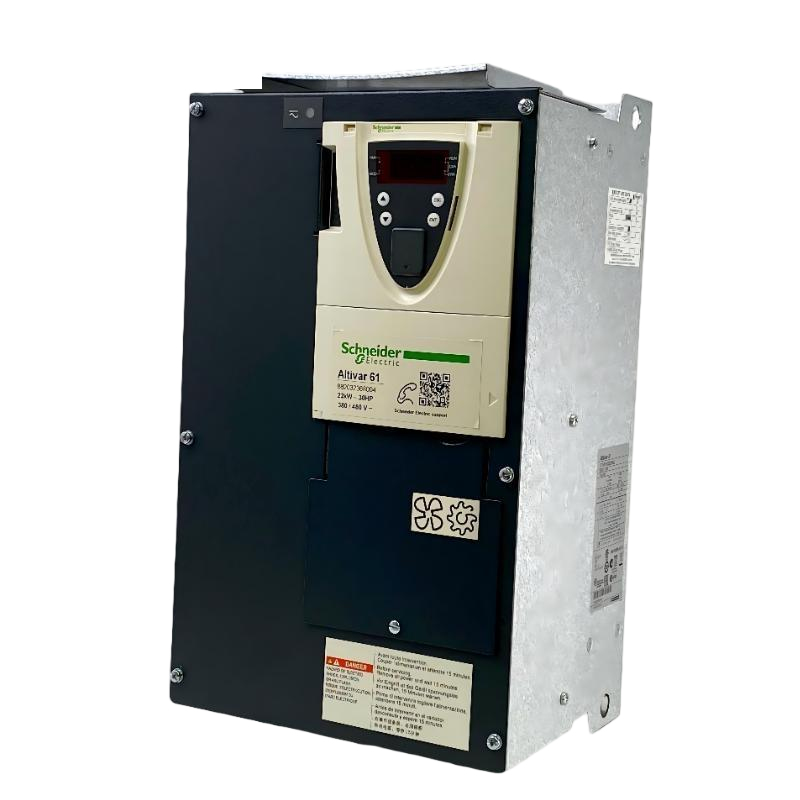

Schneider ATV61HD22N4
Brand：Schneider
Item No.：ATV61HD22N4
Product Type：Variable Frequency Drive (VFD)
Product Origin：France
Dimensions：240 × 420 × 236 mm
Weight：30 kg
Payment：T/T, Western Union, Credit Card
Shipping Port：Xiamen, China
Lead Time：1-3 Days
Condition：Brand New And Original
Warranty：1 Year
What motor power is the ATV61HD22N4 designed for?
It is designed to control three‑phase motors up to 22 kW (30 HP).
What supply voltage and frequency does this drive require?
The ATV61HD22N4 operates on a three‑phase 380–480 V AC supply at 50 / 60 Hz.

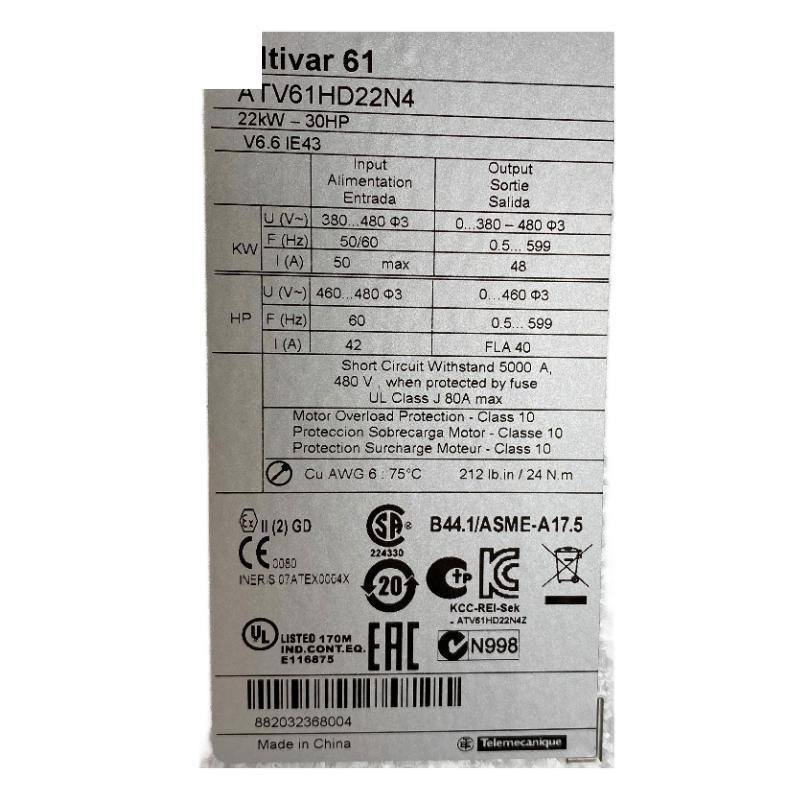

What is the nominal output current of the ATV61HD22N4?
The drive provides approximately 48 A at 380 V and about 40 A at 460–480 V.
What frequency range can this model output?
It can output an adjustable frequency range from about 0.1 Hz up to 599 Hz.
What control methods does the ATV61HD22N4 support?
Control methods include sensorless vector control and multiple V/f control profiles.
What communication protocols are supported?
It supports Modbus RTU and CANopen communication interfaces; optional expansion cards offer additional protocols.
What are the physical dimensions and weight of this drive?
The unit measures about 240 × 420 × 236 mm and weighs approximately 30 kg.
What protection and EMC features does this drive have?
It includes built‑in protections (overcurrent, overvoltage, undervoltage, thermal) and an integrated Level 3 EMC filter for reliable operation.
Regular source, test instructions can be coordinated, and after-sales service continues to follow up
Regular models are in stock for a long time, and the inventory is stable. Welcome to inquire about the price!
