Product Introduction Schneider ATV61HD30N4 Brand：Schneider Item No.：ATV61HD30N4 Product Type：Variable Frequency Drive (VFD) Product Origin：France Dimensions：240 × 550 × 266 mm Weight：3
| Release time | Jun 02, 2026 |
| Manufacturer | Schneider PLC |
| Model | ATV61HD30N4 |
| Part Number | IN44815 |
| Condition | 100% New |
| Shipping Port | Xiamen, China |
| Lead Time | 1-3 Working Days |
| Certificate | COO |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
| Warranty | 1 Years |
Product Introduction

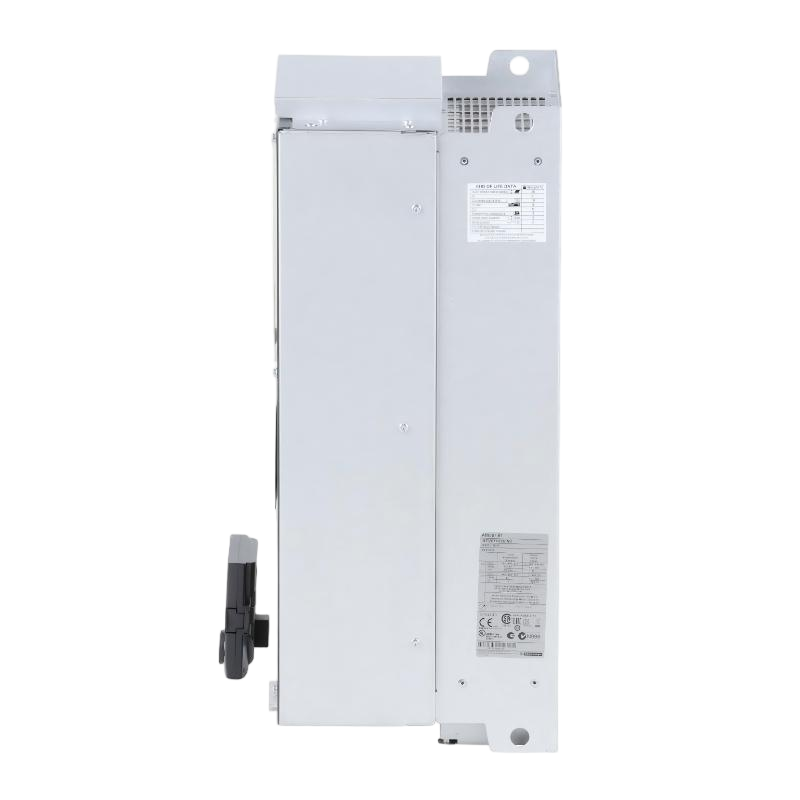

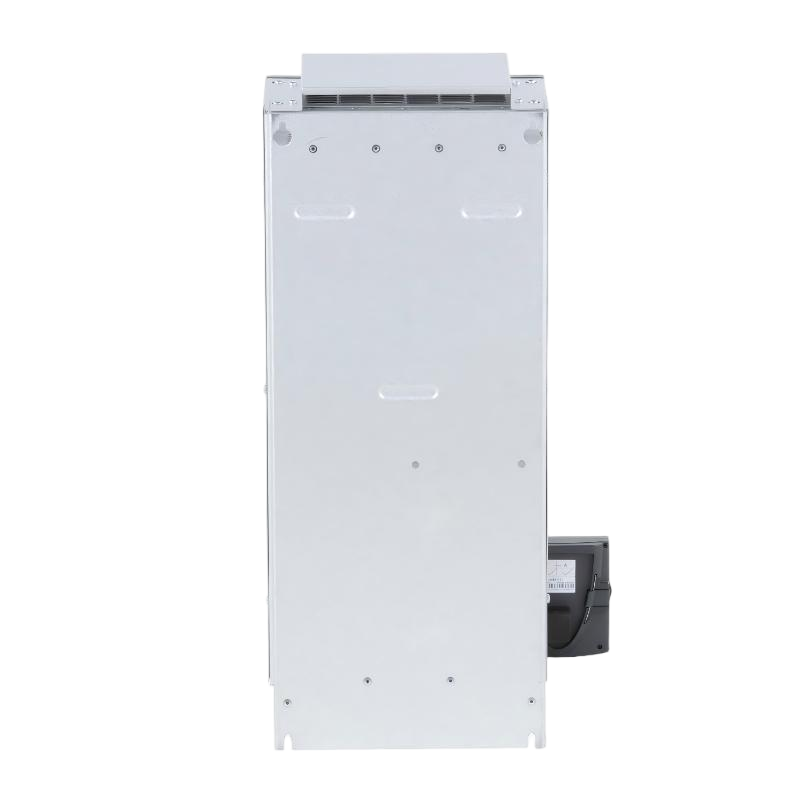

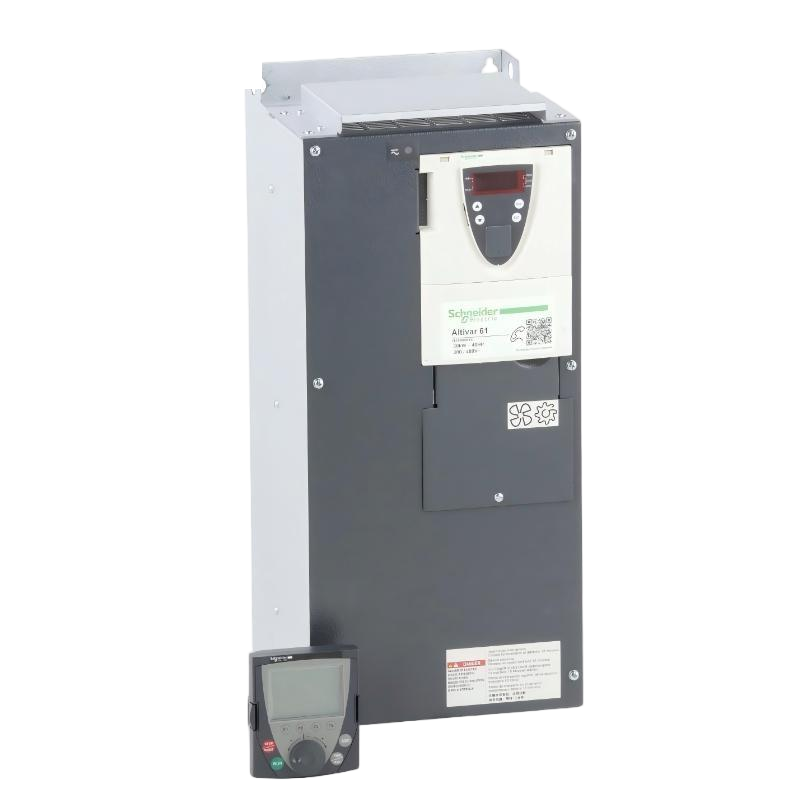

Schneider ATV61HD30N4
Brand：Schneider
Item No.：ATV61HD30N4
Product Type：Variable Frequency Drive (VFD)
Product Origin：France
Dimensions：240 × 550 × 266 mm
Weight：37 kg
Payment：T/T, Western Union, Credit Card
Shipping Port：Xiamen, China
Lead Time：1-3 Days
Condition：Brand New And Original
Warranty：1 Year
What motor power is the ATV61HD30N4 designed for?
The ATV61HD30N4 is designed for three‑phase motors with a rated power of 30 kW (40 HP).
What supply voltage and frequency does this drive require?
It operates on a three‑phase 380–480 V AC supply at 50 / 60 Hz.
What is the nominal output current of the ATV61HD30N4?
Nominal output current is approximately 56 A at 480 V and 66 A at 380 V.
What output frequency range can this drive provide?
The output frequency range is adjustable from about 0.1 Hz up to 599 Hz.
What control methods does the ATV61HD30N4 support?
It supports voltage/frequency (V/F) control and sensorless flux vector control for flexible motor speed and torque management.
Does this model include an EMC filter?
Yes — it includes an integrated Level 3 EMC filter for electromagnetic compatibility.
What are the physical dimensions and weight of this drive?
Typical dimensions are approximately 240 × 550 × 266 mm, and it weighs about 37 kg.
What protection rating and functions does the ATV61HD30N4 have?
The drive has an IP20 protection rating and includes built‑in protections such as overcurrent, overvoltage, undervoltage, and thermal protections.
